SR-7B Conclave 2007 - Stage Page

April 17, 2007 Drawings

Does anyone have a 12-foot wide OA sash to hang under the projection screen?

Projection screen is 3-feet from upstage edge of stage.

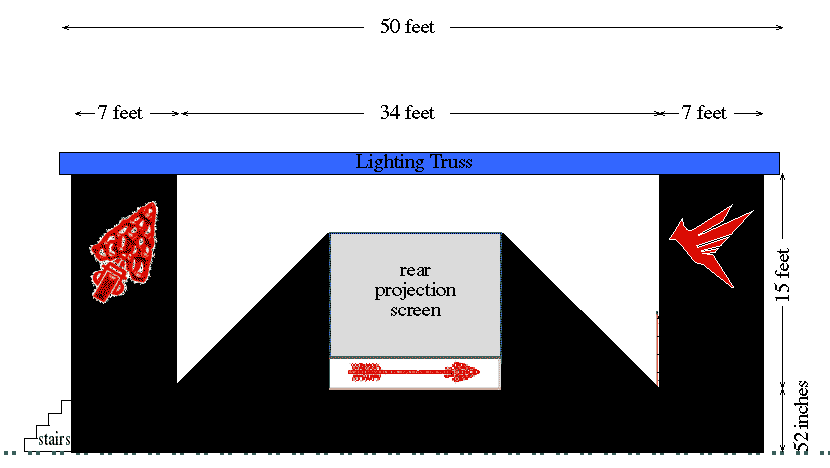

A front view of the stage with curtains (black plastic).

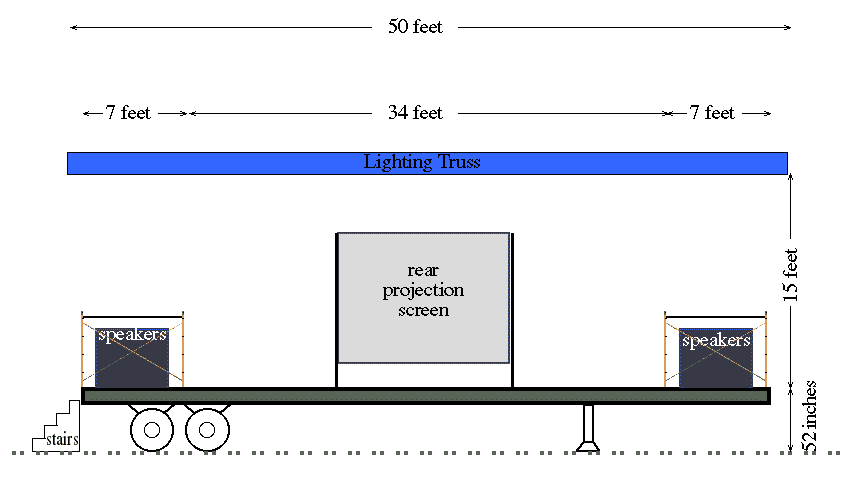

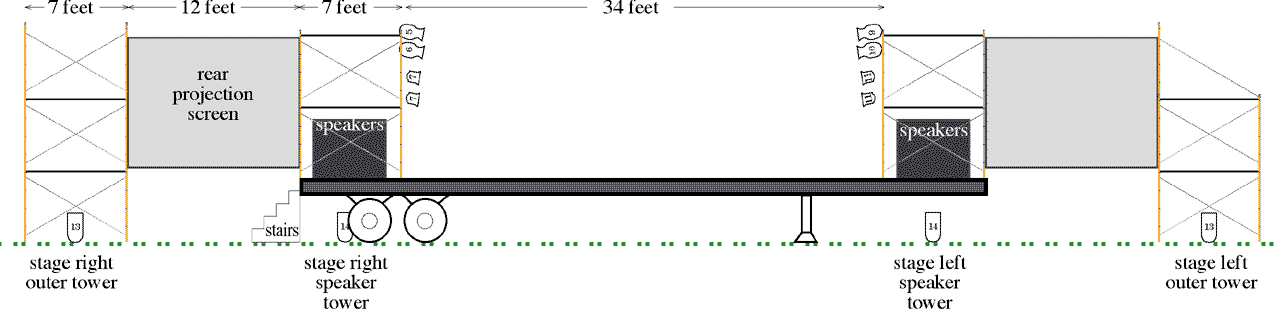

A front view of the stage with curtains removed.

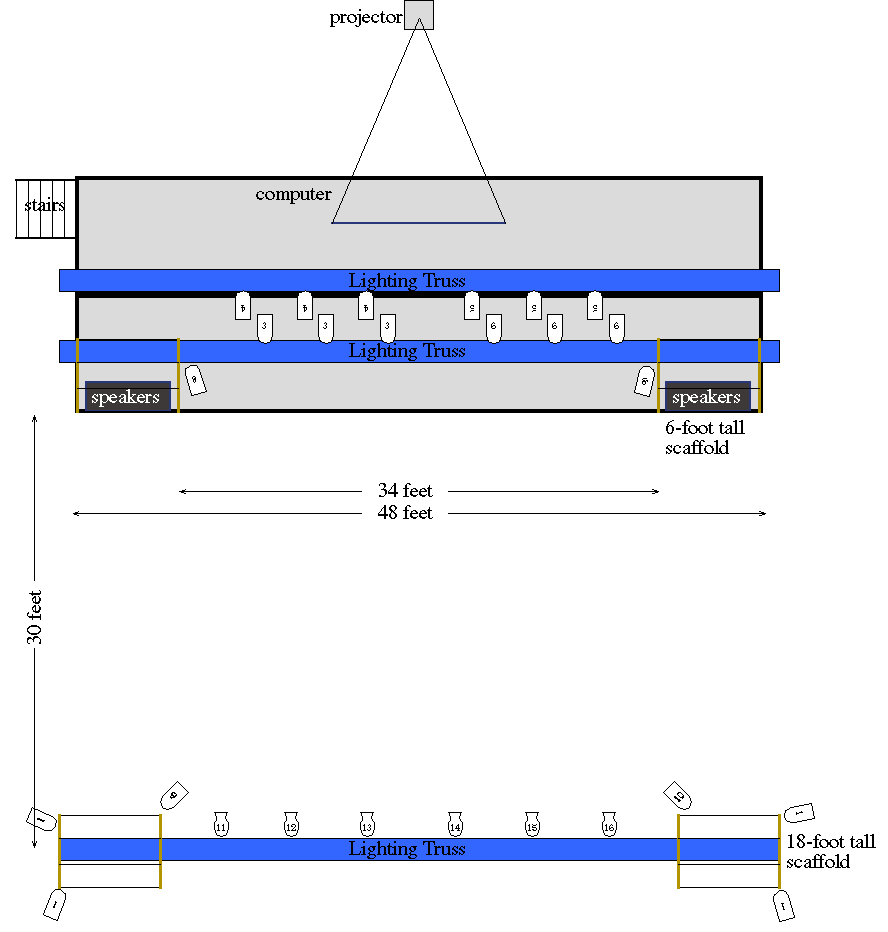

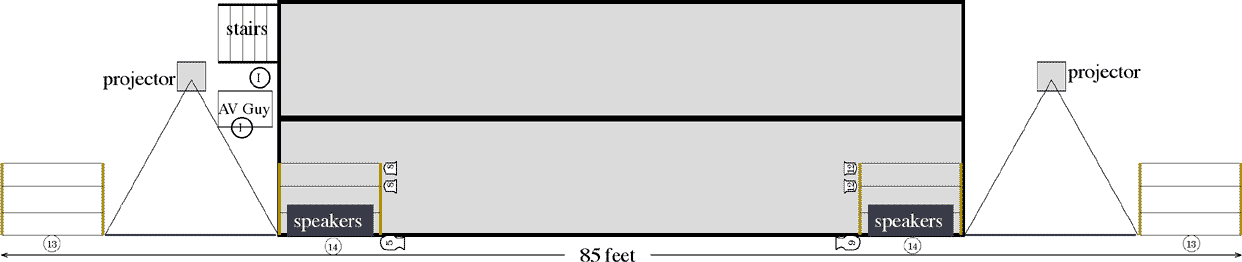

A top view of the stage with curtains removed.

April 5, 2007 Drawings

A front view of the stage with curtains removed.

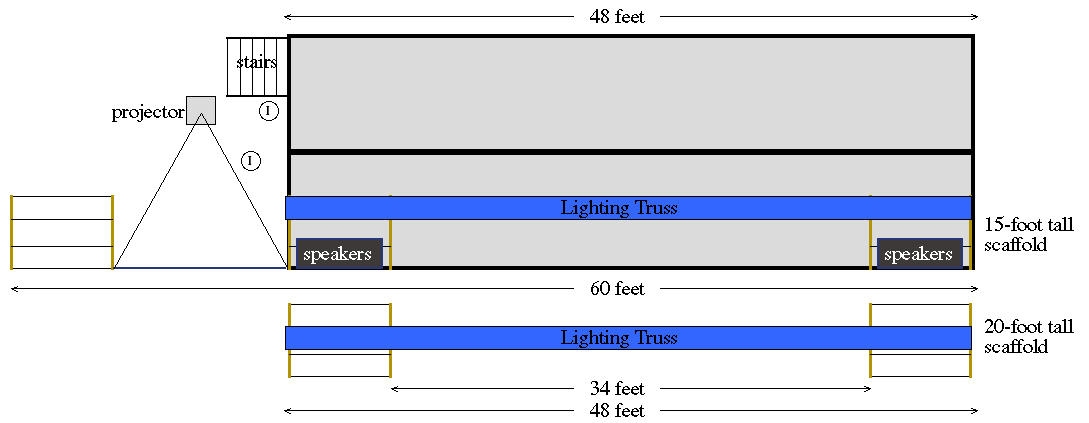

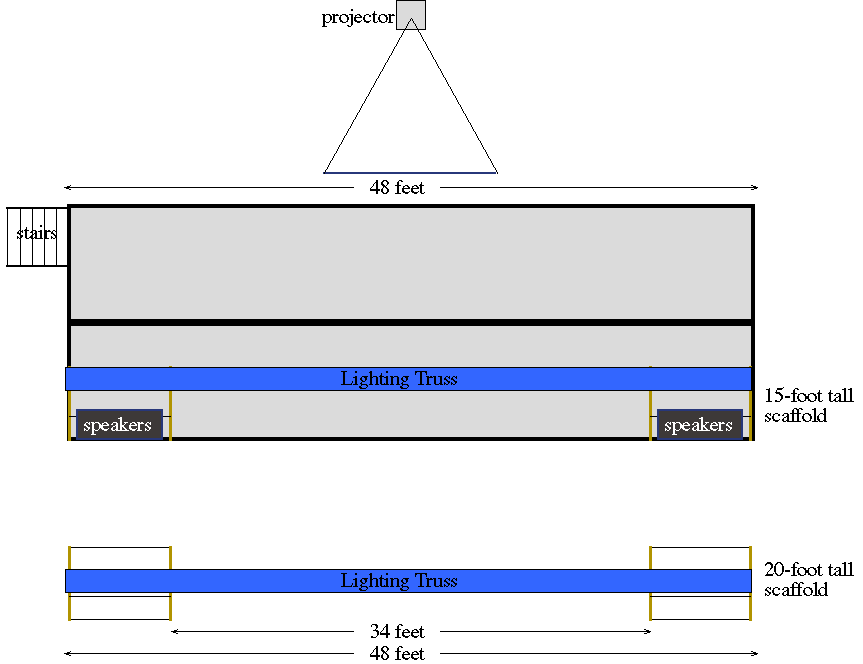

A top view of the stage with curtains removed.

April 4, 2007 Drawings

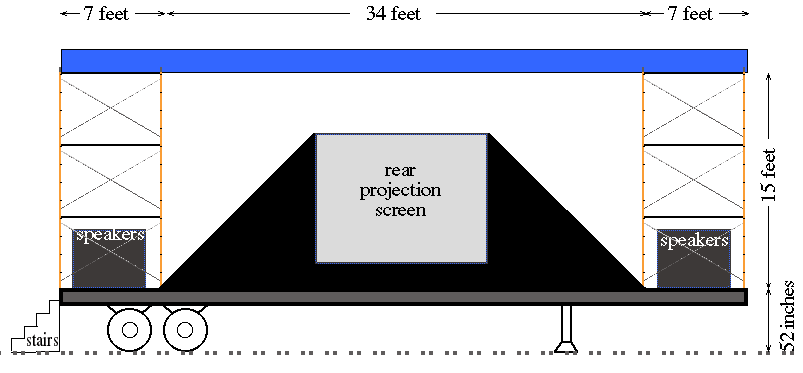

A front view of the stage with curtains removed.

A top view of the stage with curtains removed.

Old drawings

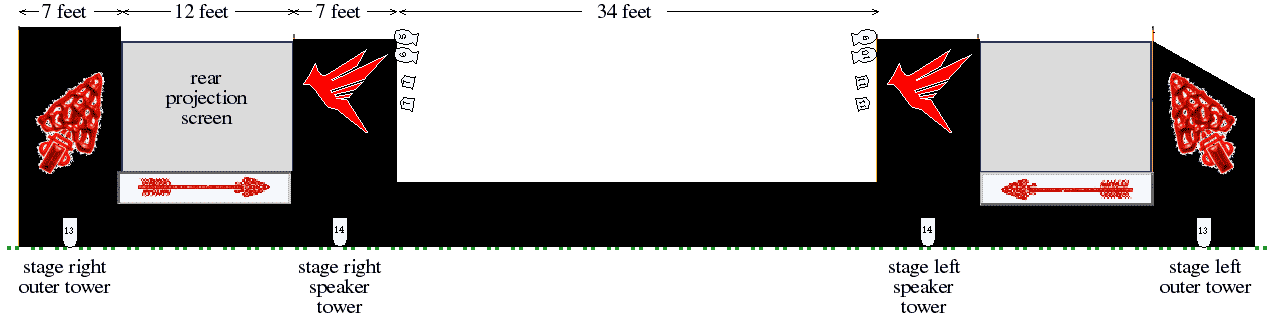

A view of the stage with curtains (black plastic) and possible logo artwork. Lighting instruments are shown. Lights can illuminate the artwork from the ground. The logos could be painted on a sheet of black plastic and taped in place. I drew one off-stage tower with a straight top and one with an angled top. I like the angled top better. The red bird artwork probably can't go as low as shown due to speaker placement. Depending on the rake (angle) of the audience area, the speakers might need to be higher than the top of the stage. The area in front of the speakers will be black fabric instead of black plastic.

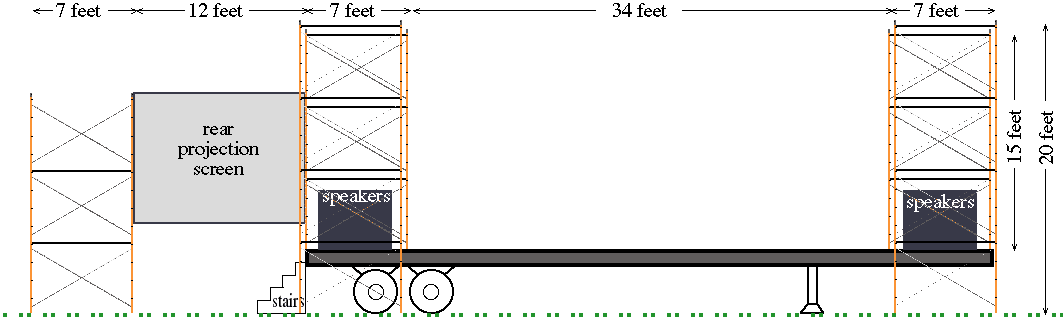

A front view of the stage with curtains removed. Video screens are tied between two scaffolding towers. Depending on the rake (angle) of the audience area, the speakers might need to be higher than shown. They might go on the platform above the indicated position.
